welcome to
trussingchina - truss
it is made by the aluminum material, (the
international aluminum type of T6 6061
6082)
the main tube for the truss is 50mm diameter
, by thickness of 3mm ,
(for some special use it is by thickness of
2mm or 4mm or 5mm )
often each pcs truss length by 0.5m /1m/
1.5m/2m /2.5m/3m/3.5m /4m , 0.1m~4m .
1)

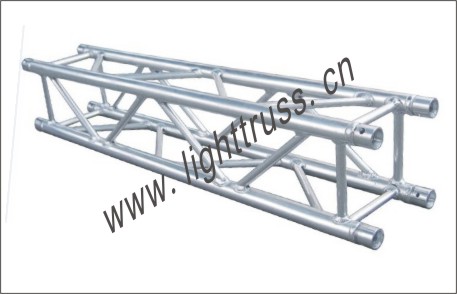

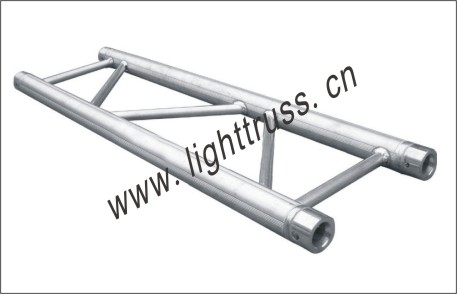

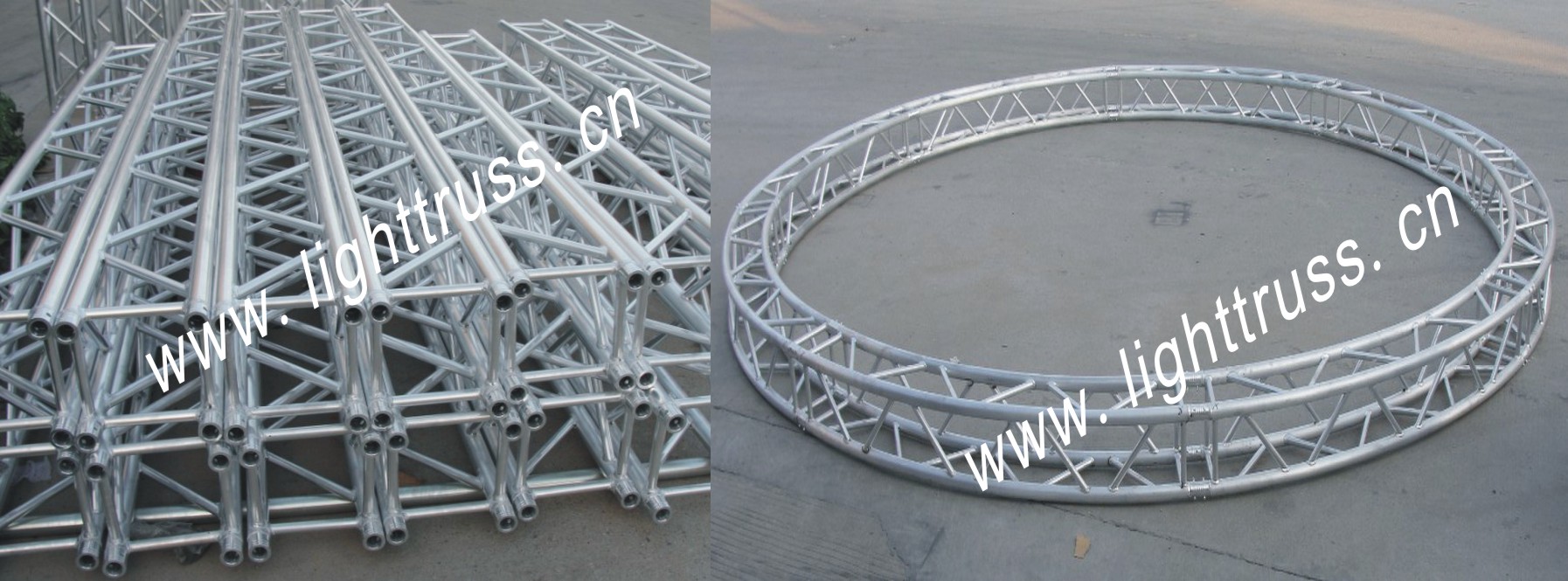

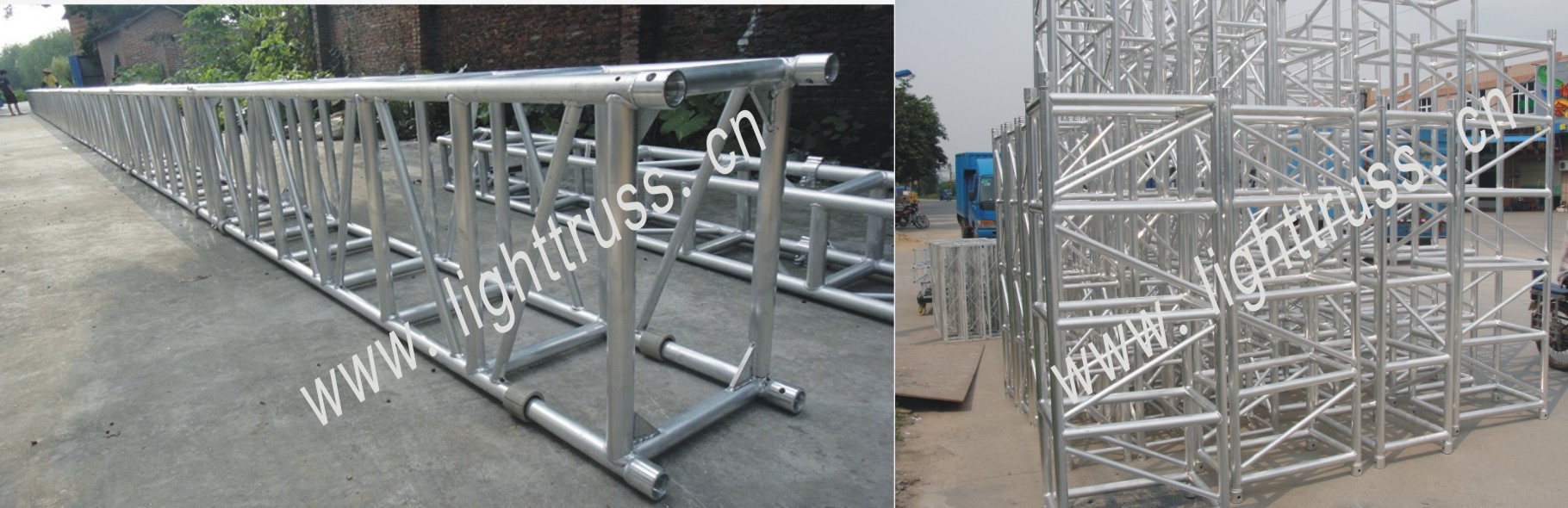

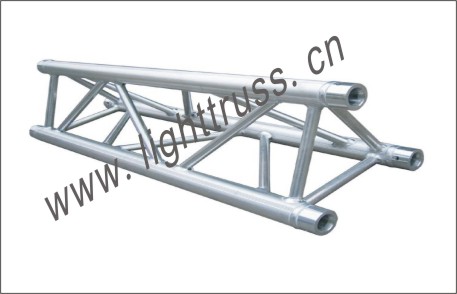

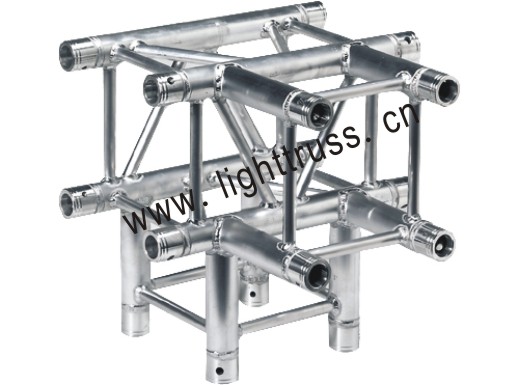

spigot style truss, global truss, Europe
truss ,Thomas truss

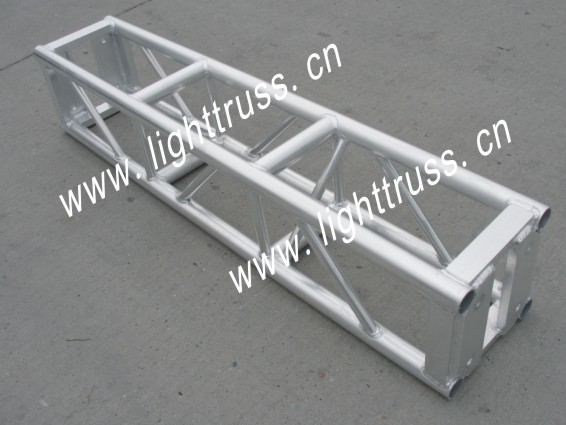

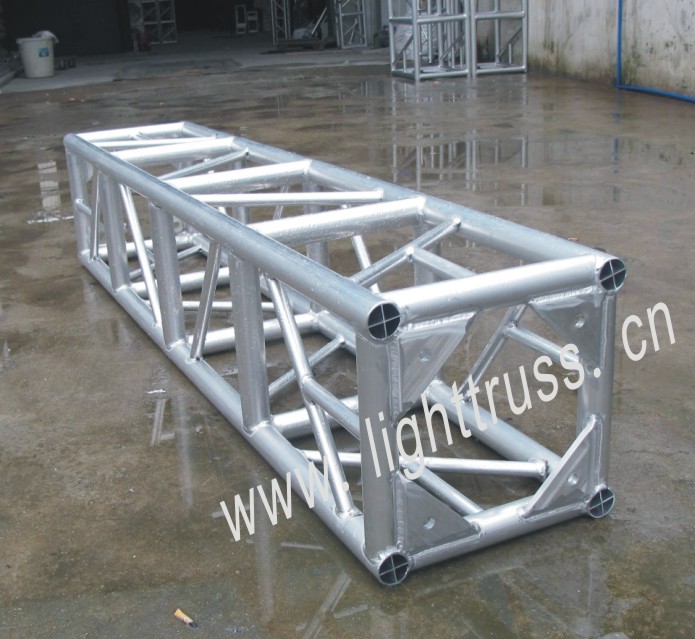

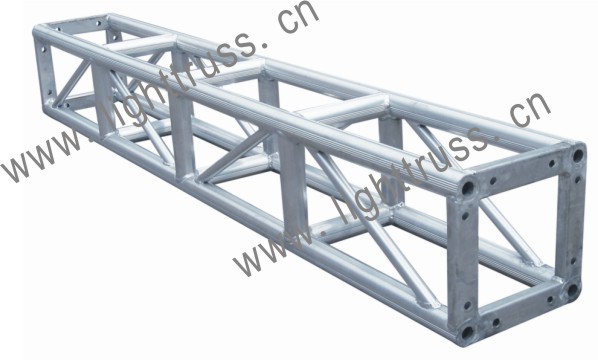

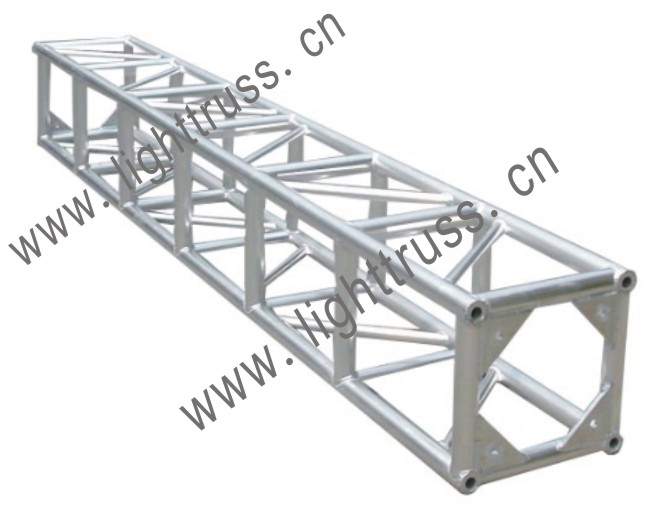

2) screw style truss, bolt truss

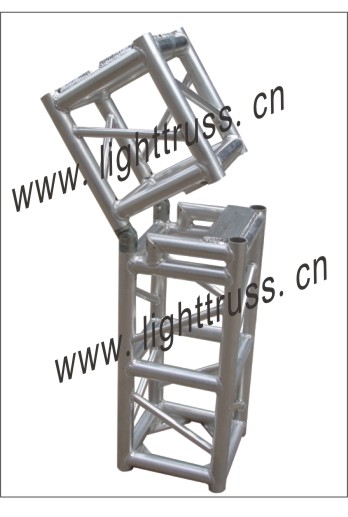

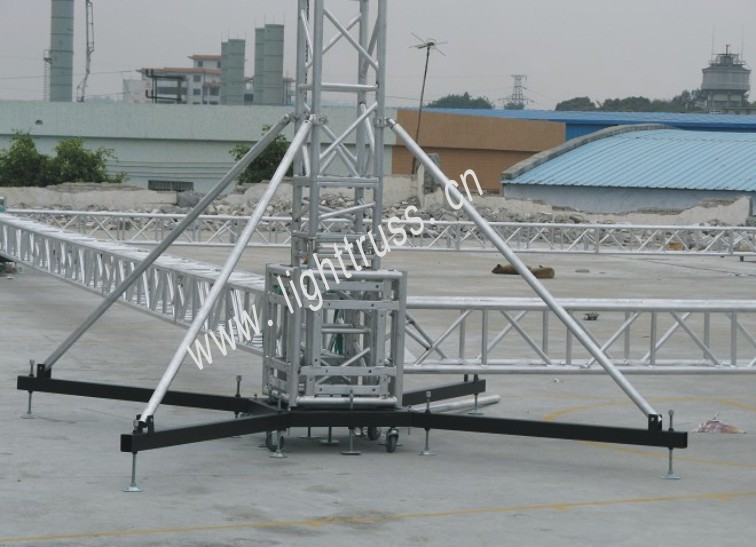

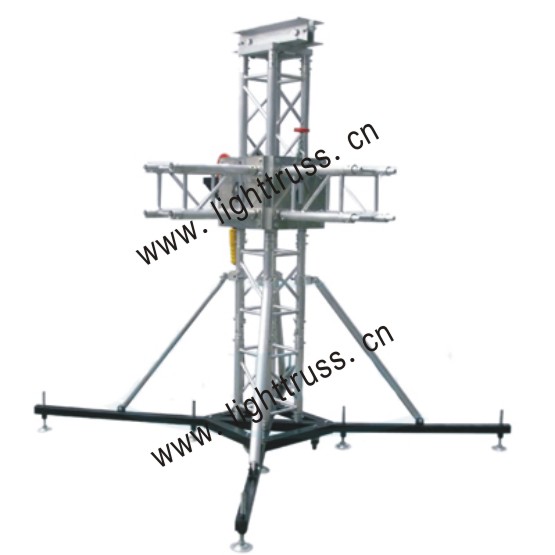

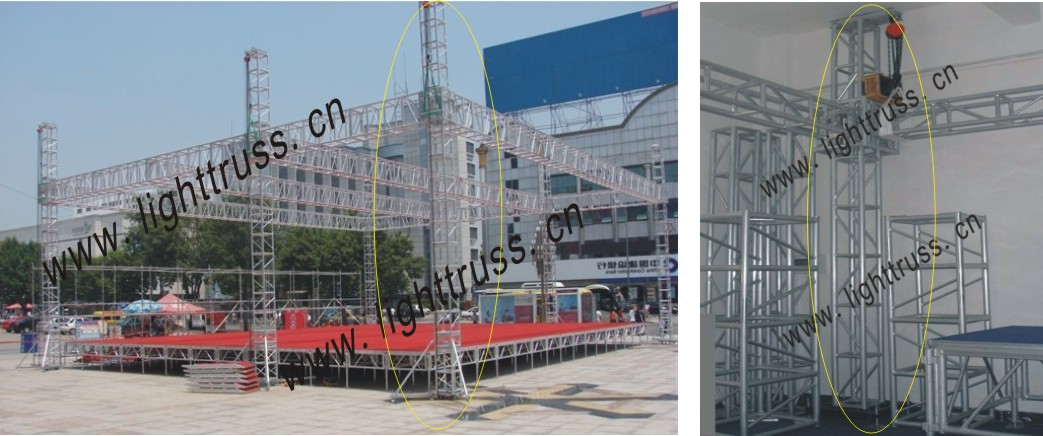

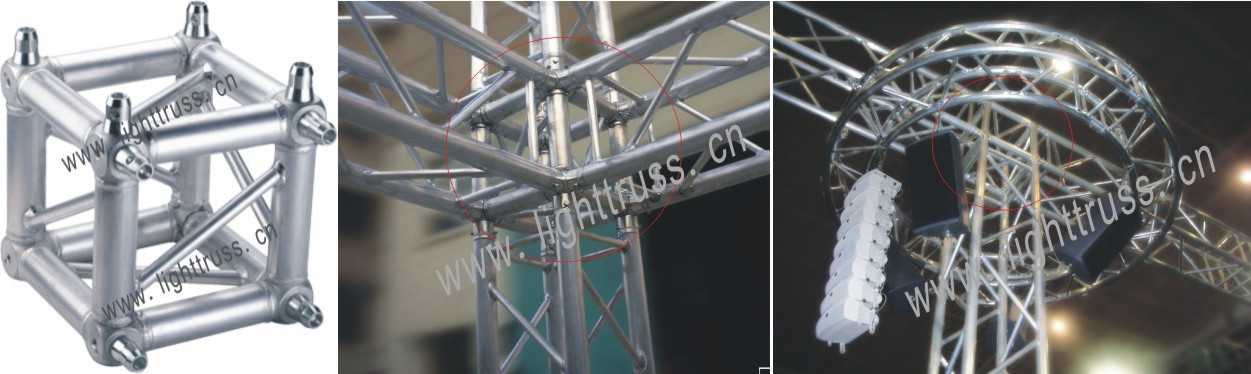

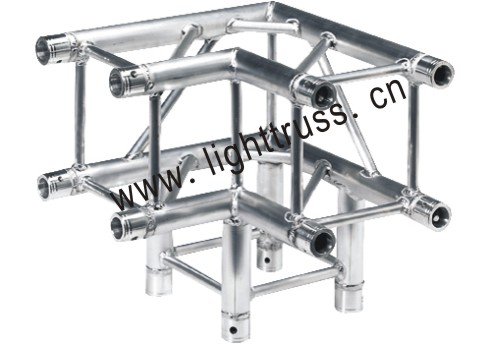

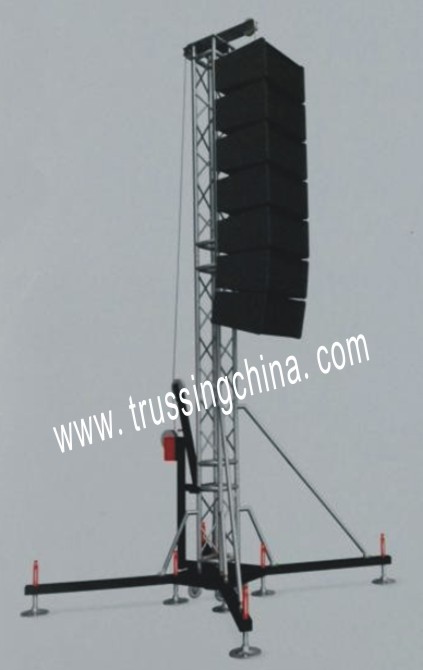

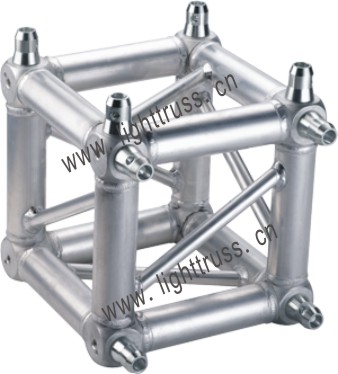

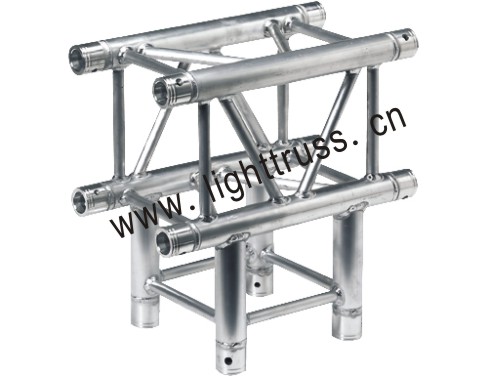

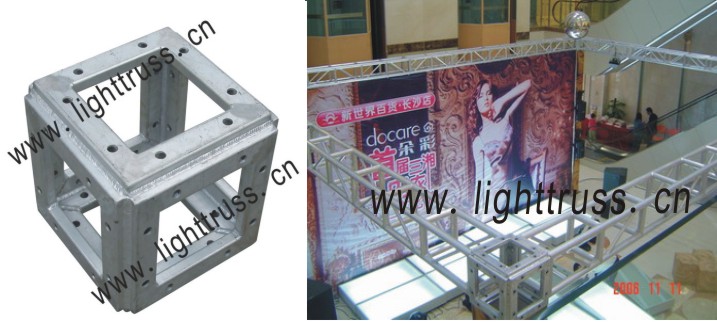

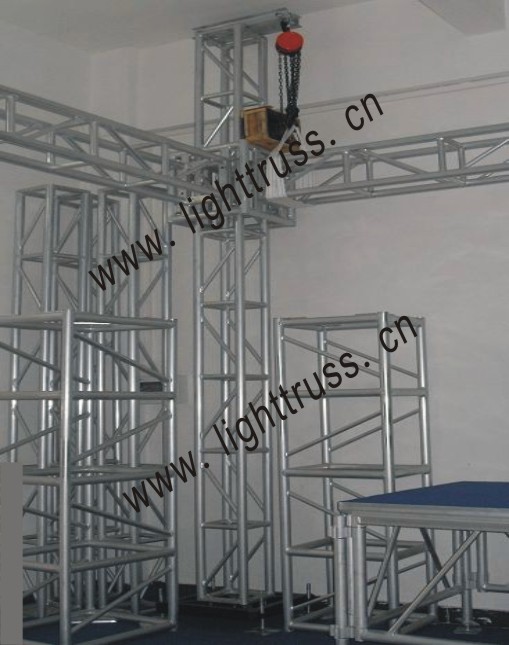

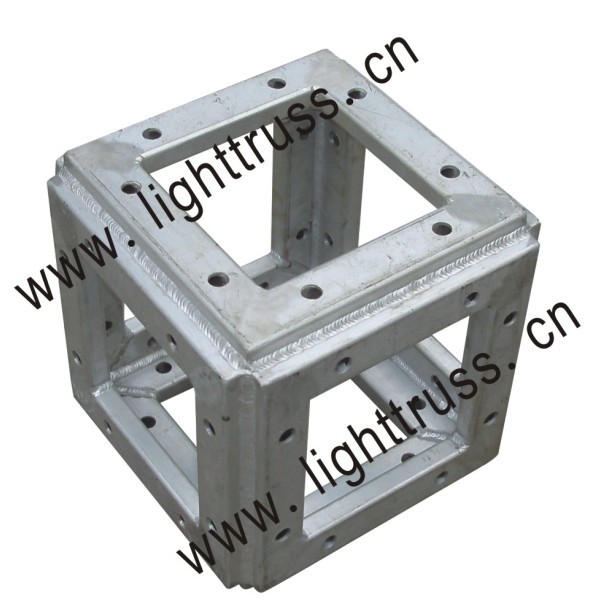

the lift system include the top piece/corner
block/hinge section/floor base/support
brace,

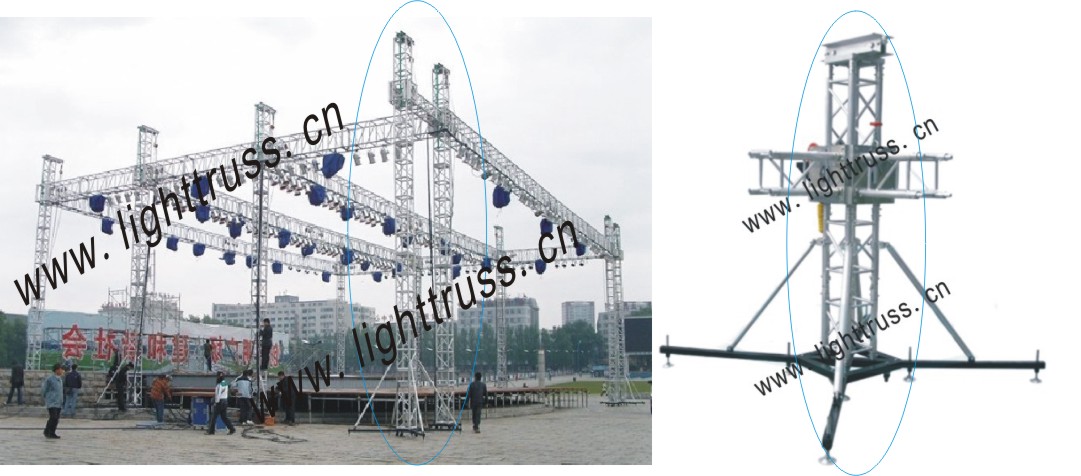

the full truss system is raise up&down by

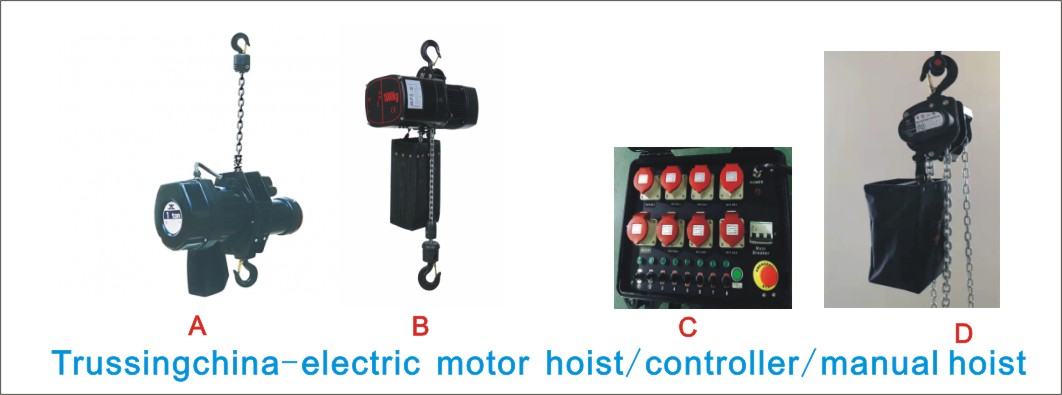

the chain lift hoist or electric motor .
the aluminum truss international standard
models as :
model:200*200mm, main tube:25*2mm,small
tube:15*1.5mm, safety span:8m, loading
weight:150kg
model:220*220mm, main tube:25*2mm,small
tube:15*1.5mm, safety span:9m, loading
weight:200kg
model:250*250mm, main tube:25*2mm,small
tube:15*1.5mm, safety span:10m, loading
weight:300kg
model:289*289mm, main tube:50*2mm,small
tube:25*2mm, safety span:12m, loading
weight:450kg
model:300*300mm, main tube:50*3mm,small
tube:25*2mm, safety span:12m, loading
weight:500kg
model:350*350mm, main tube:50*3mm,small
tube:25*2mm, safety span:13m, loading
weight:600kg
model:400*400mm, main tube:50*3mm,small
tube:25*2mm, safety span:15m, loading
weight:700kg
model:450*450mm, main tube:50*3mm,small
tube:25*2mm, safety span:16m, loading
weight:800kg
model:500*500mm, main tube:50*3mm,small
tube:25*2mm, safety span:17m, loading
weight:850kg
model:400*600mm, main tube:50*3mm,small
tube:25*2mm, safety span:18m, loading
weight:950kg
model:500*600mm, main tube:50*3mm,small
tube:25*2mm, safety span:20m, loading
weight:1000kg
model:520*760mm, main tube:50*4mm,small
tube:30*2mm, safety span:24m, loading
weight:1100kg
model:600*760mm, main tube:50*4mm,small
tube:30*2mm, safety span:26m, loading
weight:1200kg
model:760*910mm, main tube:50*4mm,small
tube:30*2mm, safety span:30m, loading
weight:1250kg
please get the style as : |
